New NVMe Battery Board for uConsole, 21700/18650 Battery Holder, Portable Power Supply Module

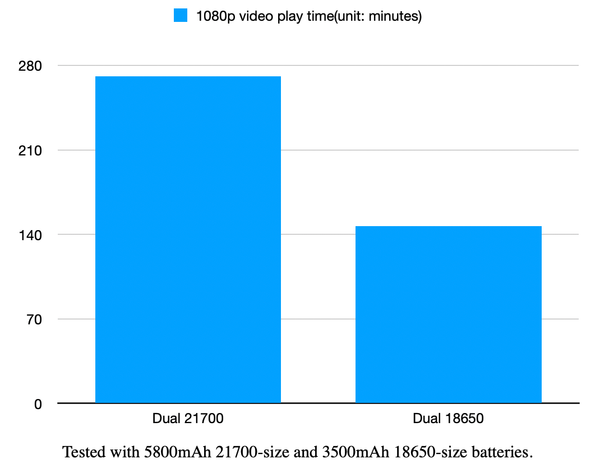

The new dual 21700 batteries and NVMe board offer 4 hours and 31 minutes of 1080p video play time, while the dual 18650 battery board offers only 2 hours and 27 minutes.

Why did we make the dual 21700 batteries and NVMe board since we already have the LiPo version, which lets you connect a 10000mAh LiPo battery? It turns out the LiPo battery isn't a good option for the uConsole. Most LiPo batteries have a protection current of 3A, but the uConsole requires 5A for heavy jobs. LiPo voltage also drops too fast at low voltage levels. For these reasons, the uConsole reboots before the LiPo battery fully discharges.

This board is fully compatible with the original back cover. No need to do any modifications to the back cover.

Features:

1. NVMe Battery slot: Supports NVMe SSDs with sizes ranging from 2230 to 2280.
2. Better battery reverse protection: No more heat generated when connecting the battery in the wrong way. And the reverse warning LED will light up.
3. Manual on/off control: Desolder R14 and connect a push-lock switch to J6. The battery will be turned on when the switch is locked. And turn off when the switch is released.

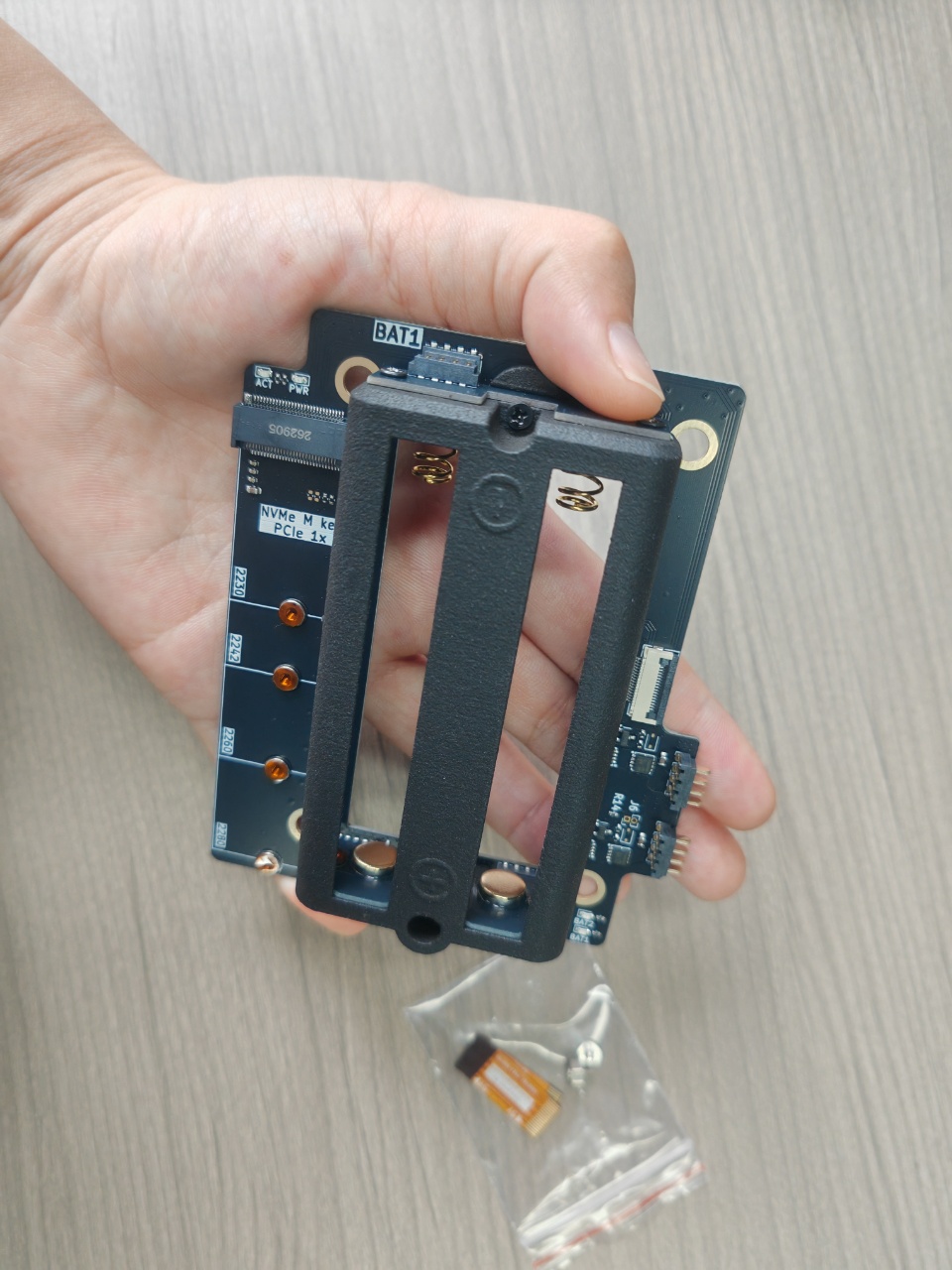

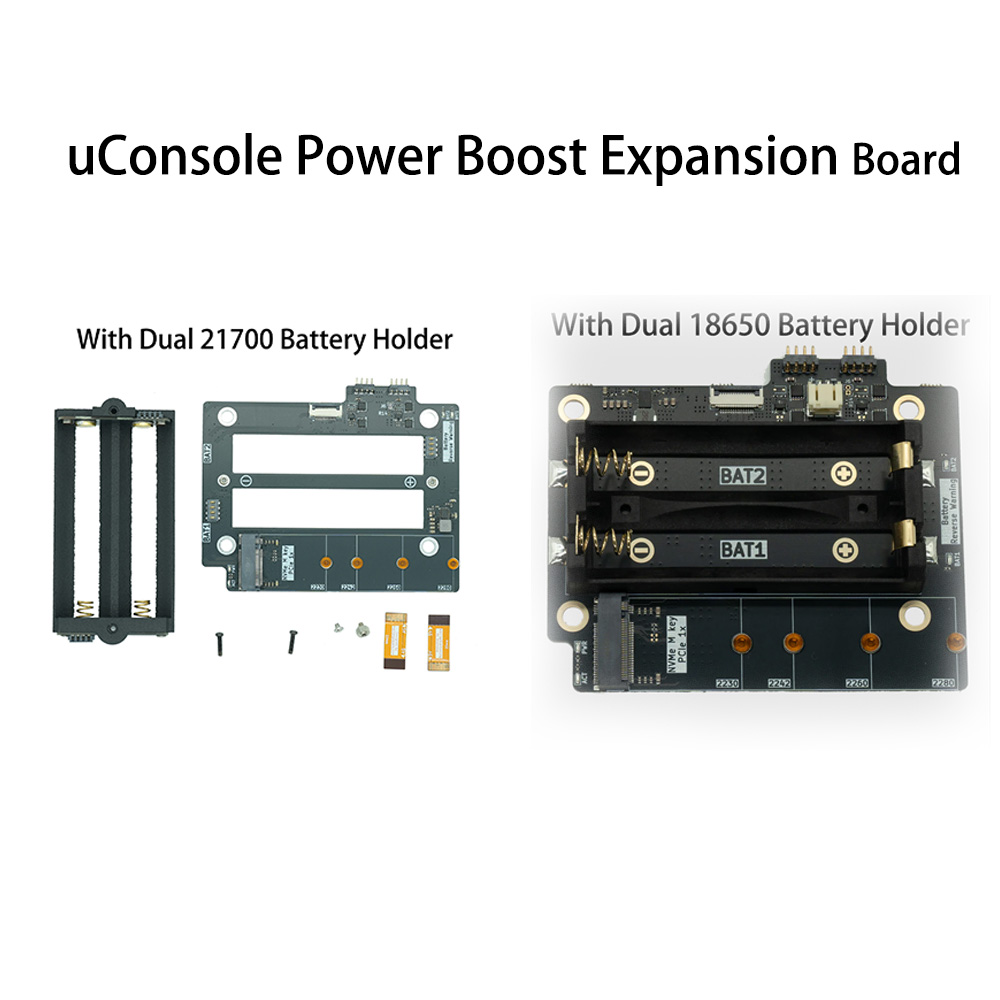

4. 21700/18650/LiPo Battery Pack: There are three variants of the boards:
1. one supporting two 21700-size batteries, one supporting two 18650-size batteries, and the other supporting a LiPo battery pack.

Note: The NVMe feature will require an adapter board from the uConsole upgrade kit.
