NEW Colorful iGame B850I MINI OC V14 Motherboard AMD B850 socket AM5, Dual PCIE 5.0 x4 x2, 5G + WIFI 7, DDR5 128GB DDR5 8800 MHz

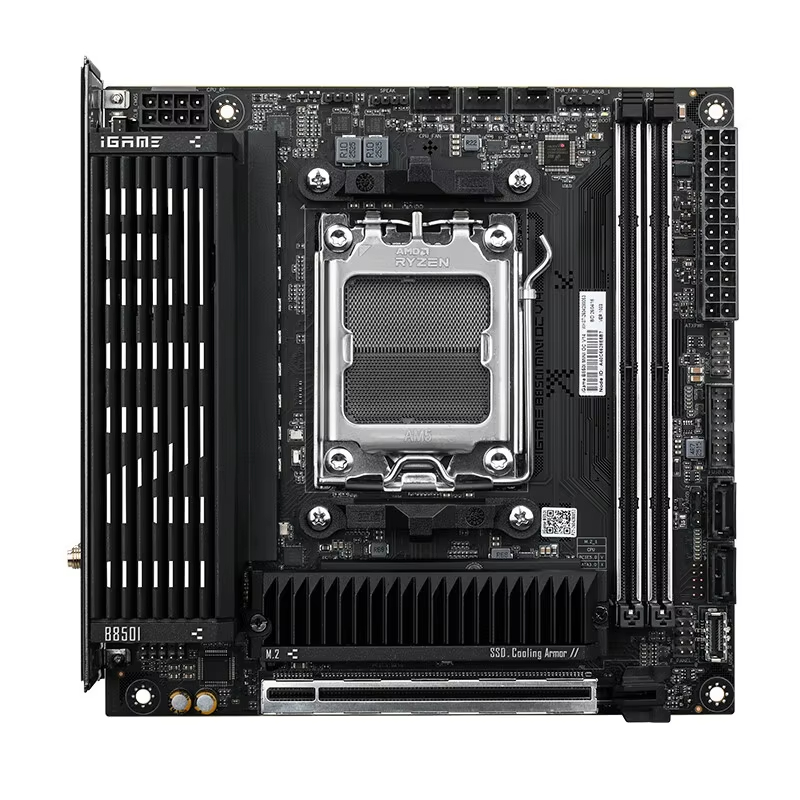

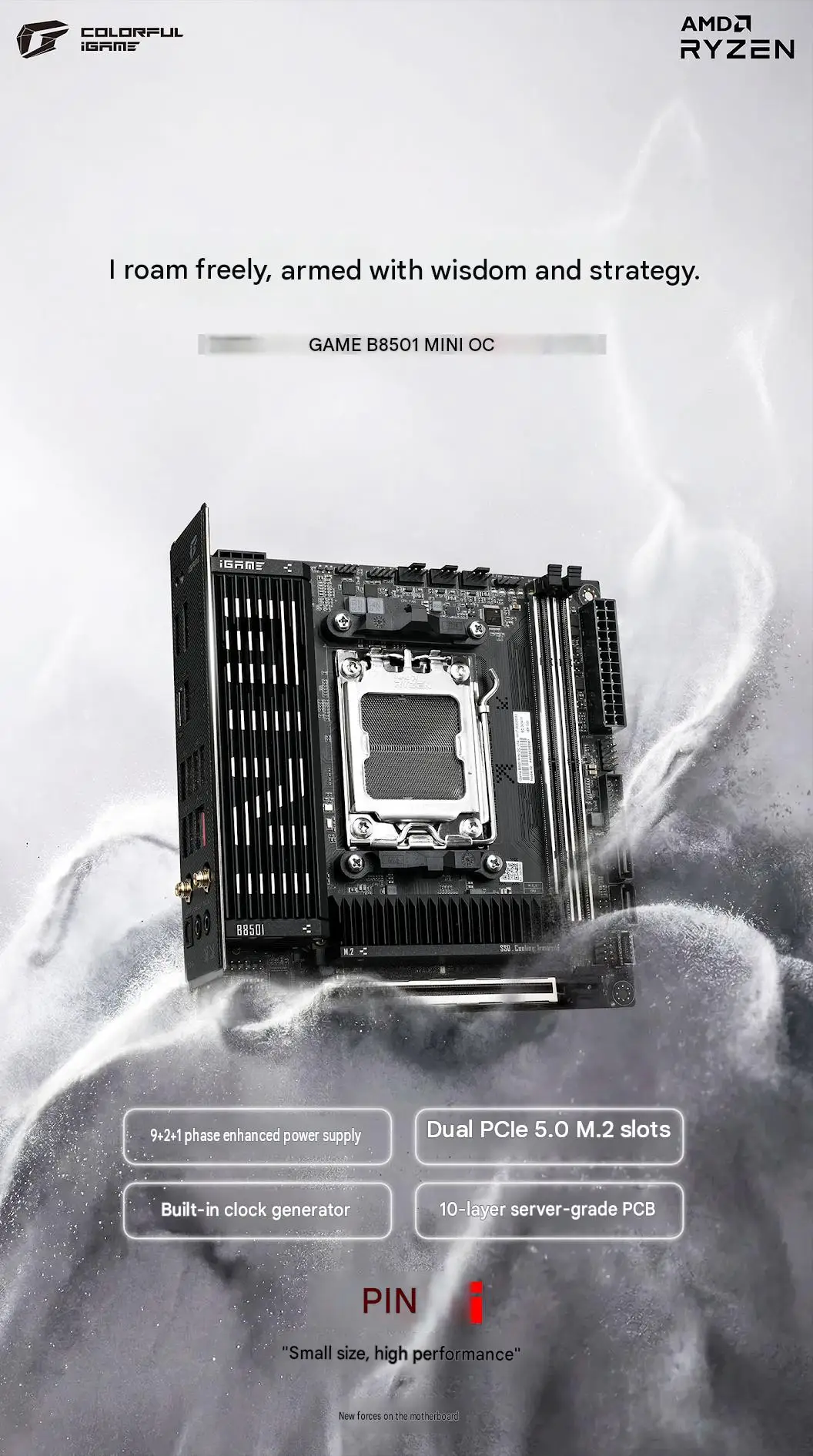

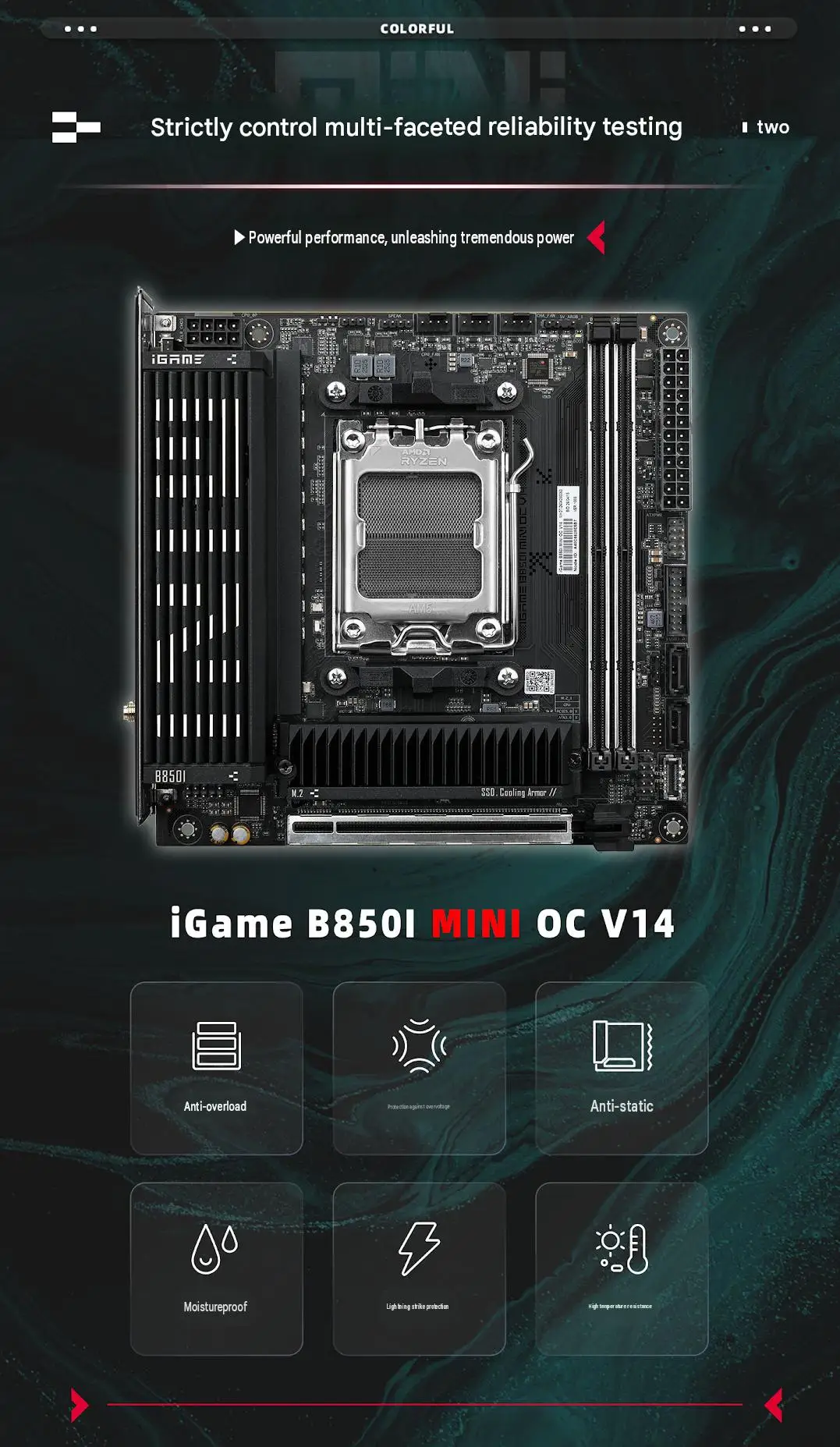

Colorful iGame B850I MINI OC V14 Motherboard

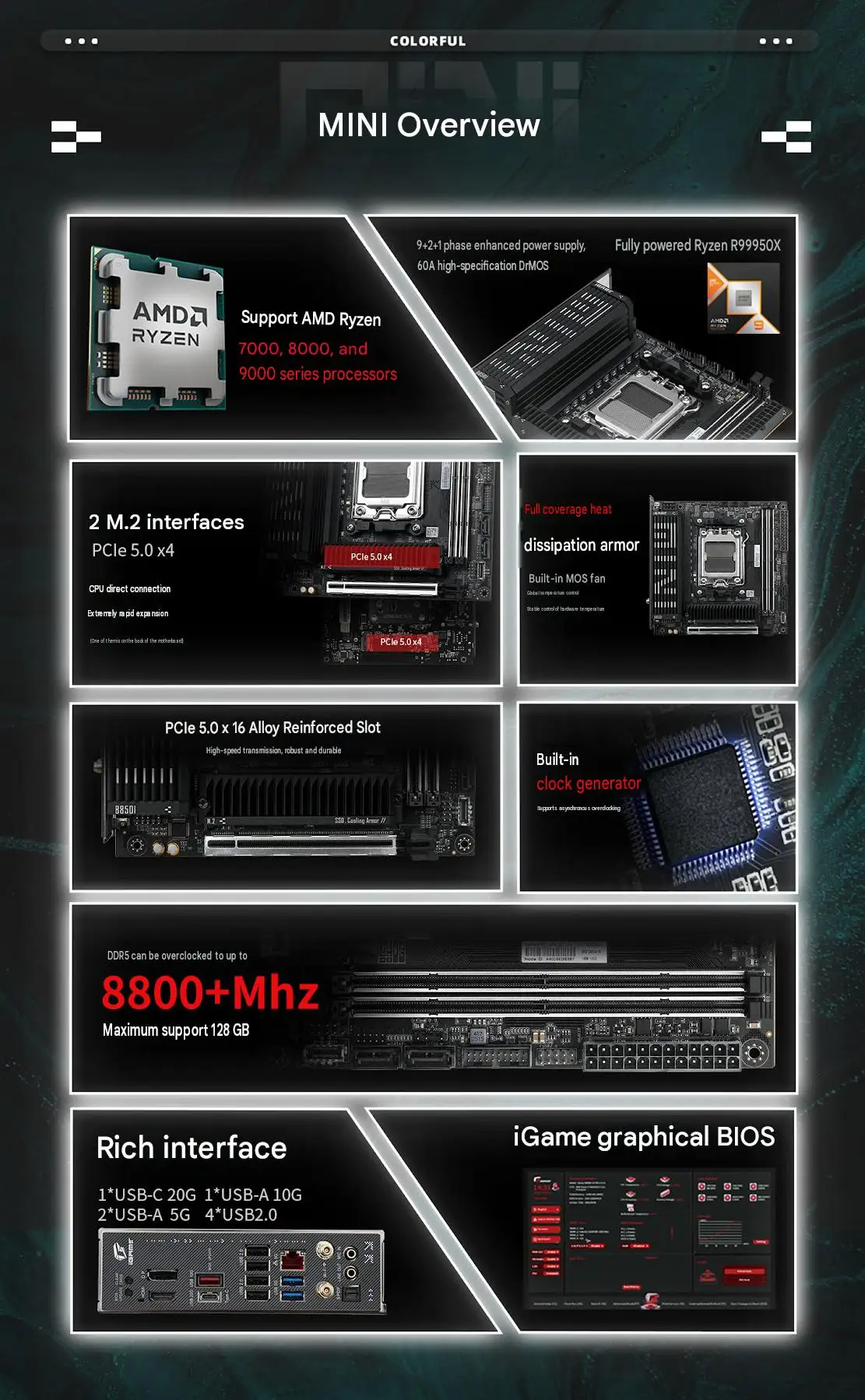

🖥️ Basic Specifications

• Chipset：AMD B850
• CPU Socket：AM5
• Supported Processors：AMD Ryzen 7000, 8000, and 9000 series
• Form Factor：Mini‑ITX (170mm × 170mm)

⚡ Power Delivery & Cooling

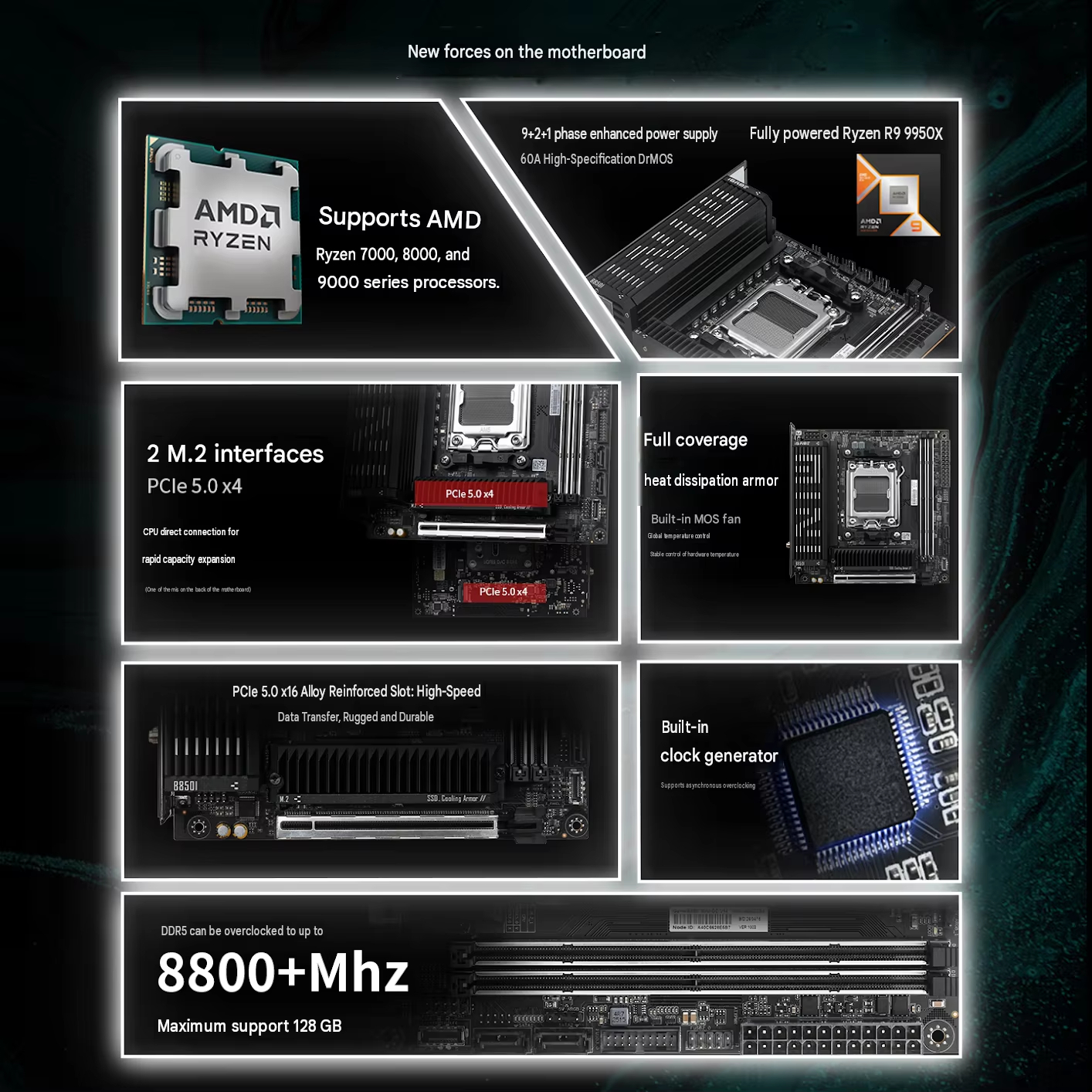

• VRM Phase：9+2+1‑phase digital VRM, using 60A DrMOS
• CPU Power Connector：Single 8‑pin solid‑pin connector
• PCB：10‑layer server‑grade low‑loss PCB

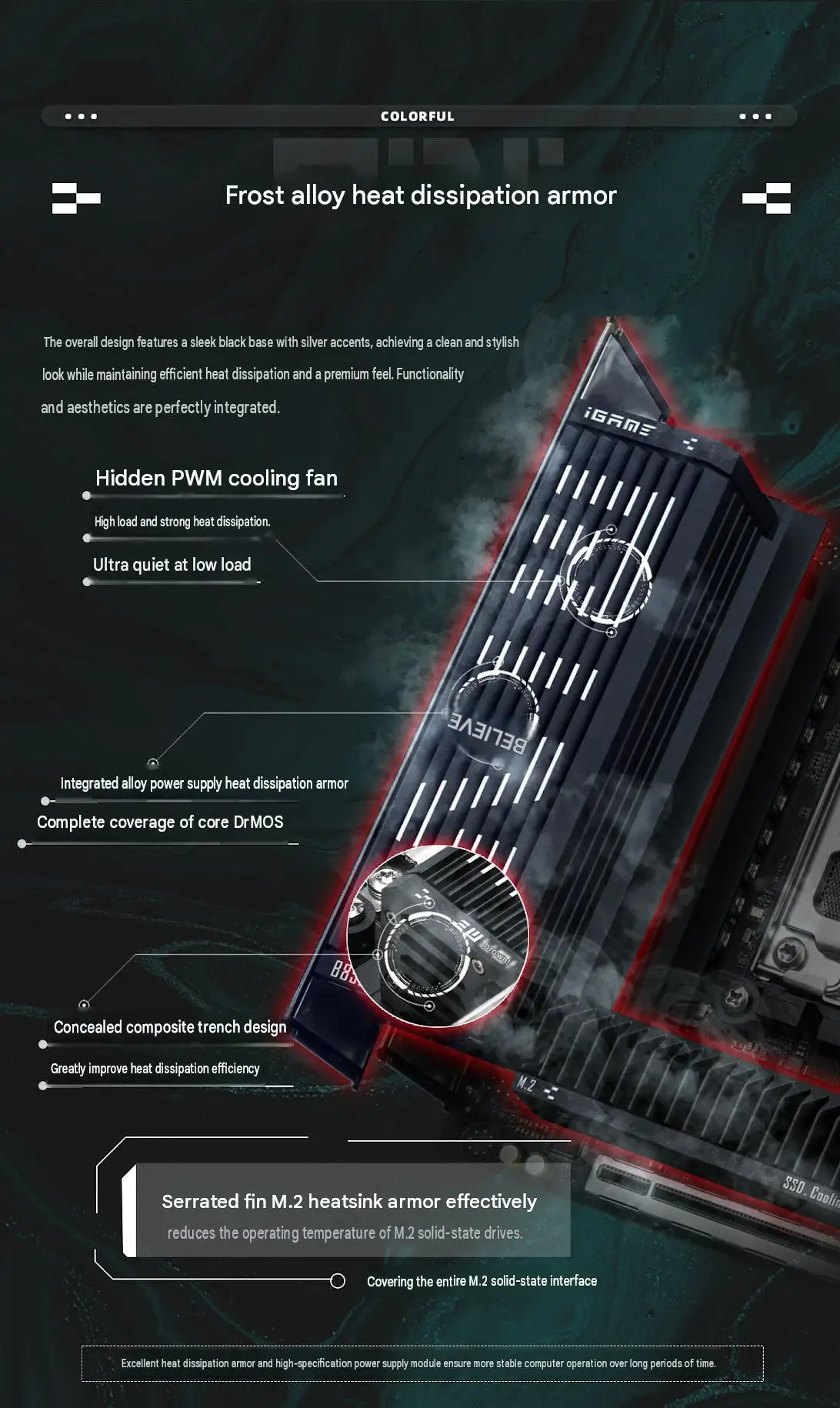

• Cooling System：Frost Alloy cooling armour with an enlarged heatsink over the DrMOS; built‑in PWM cooling fan (hidden) for the VRM area

🚀 Memory & Overclocking

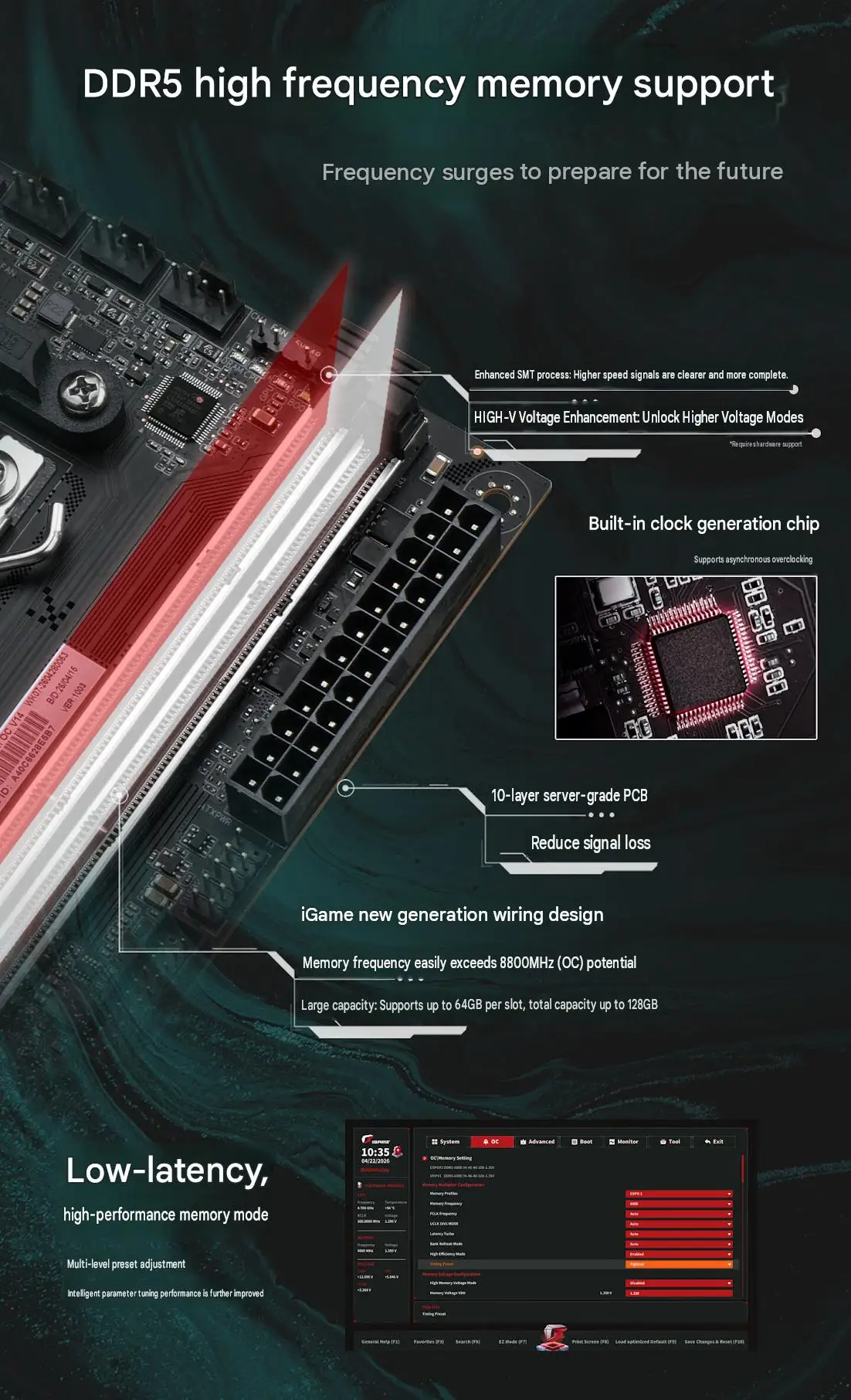

• Memory Slots：2 × DDR5 DIMM, supporting up to 128 GB total
• Memory Frequency：Rated for DDR5‑8400 MHz (OC); manual overclocking can go beyond 8800+ MHz (some sources mention up to 10200+ MHz OC with capable hardware)
• Overclocking Features：On‑board clock generator for asynchronous BCLK overclocking; enhanced SMT and HIGH‑V voltage mode for better signal integrity

💾 Expansion & Storage

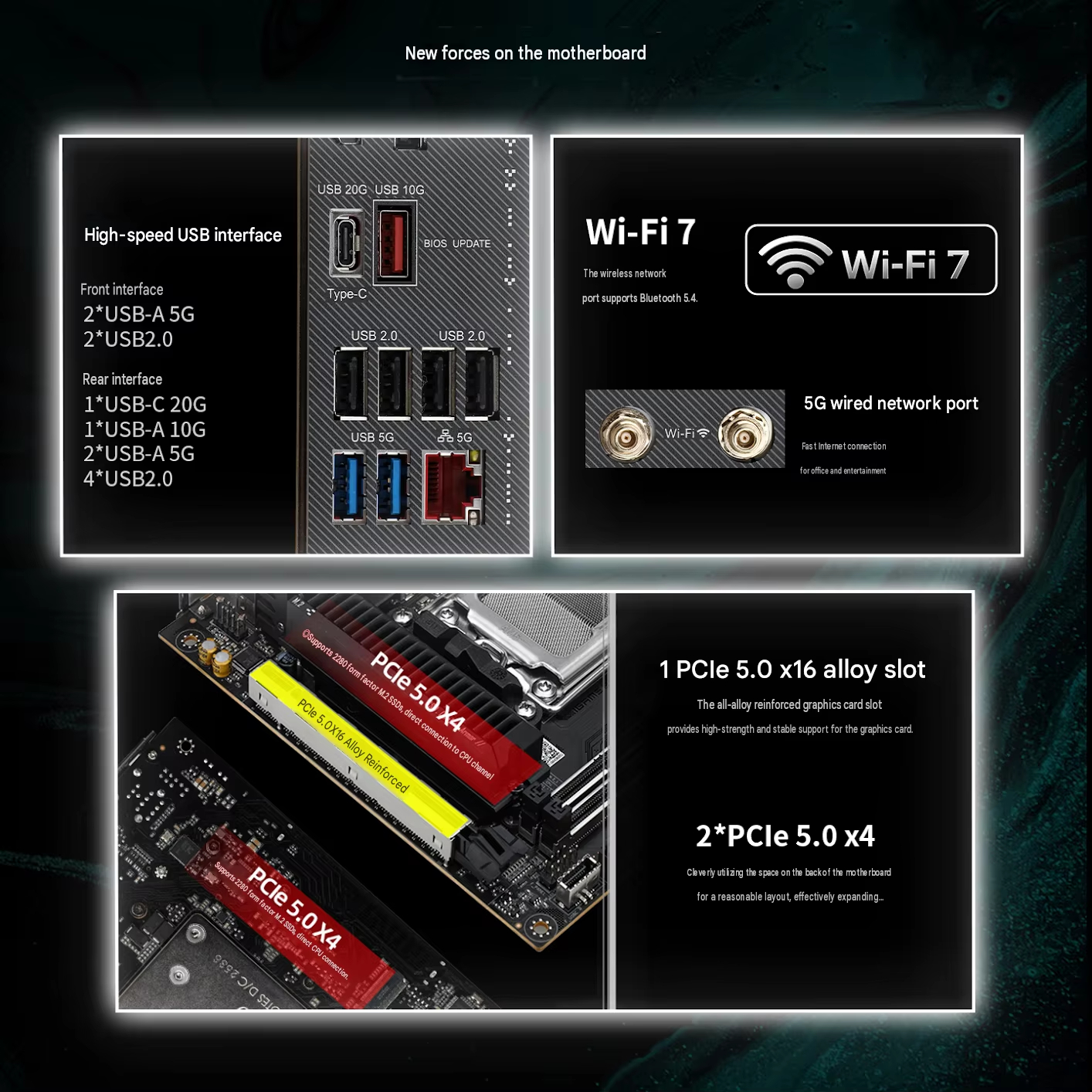

• PCIe Slot：1 × PCIe 5.0 x16 (reinforced metal slot)

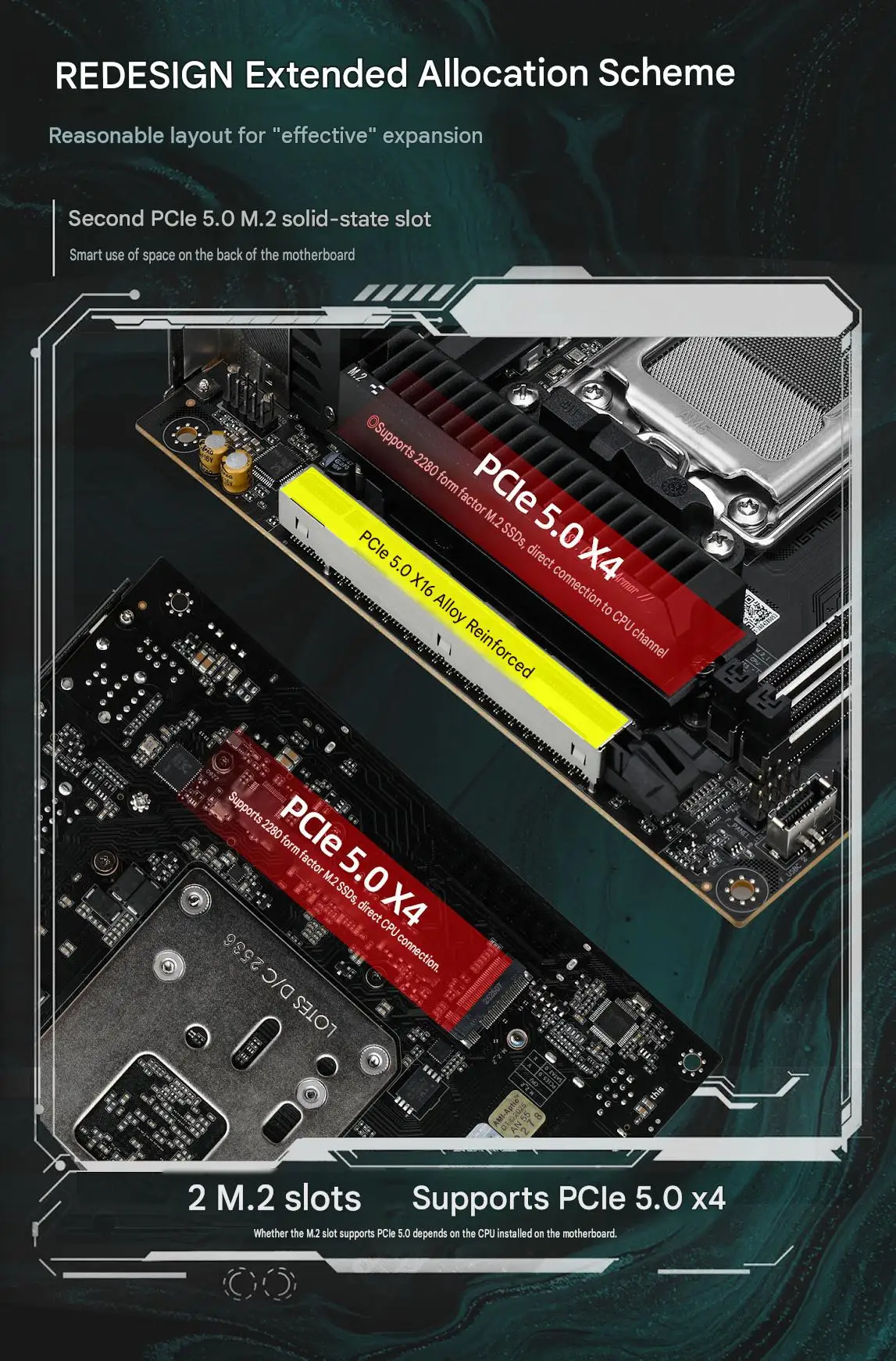

• M.2 Slots：2 × PCIe 5.0 x4 M.2 slots (both support 2280 length; one on the front, one on the back)
• SATA Ports：2 × SATA III

🔌 Networking & I/O Ports

• Wired LAN：Realtek 5GbE Ethernet (RTL8126‑CG)

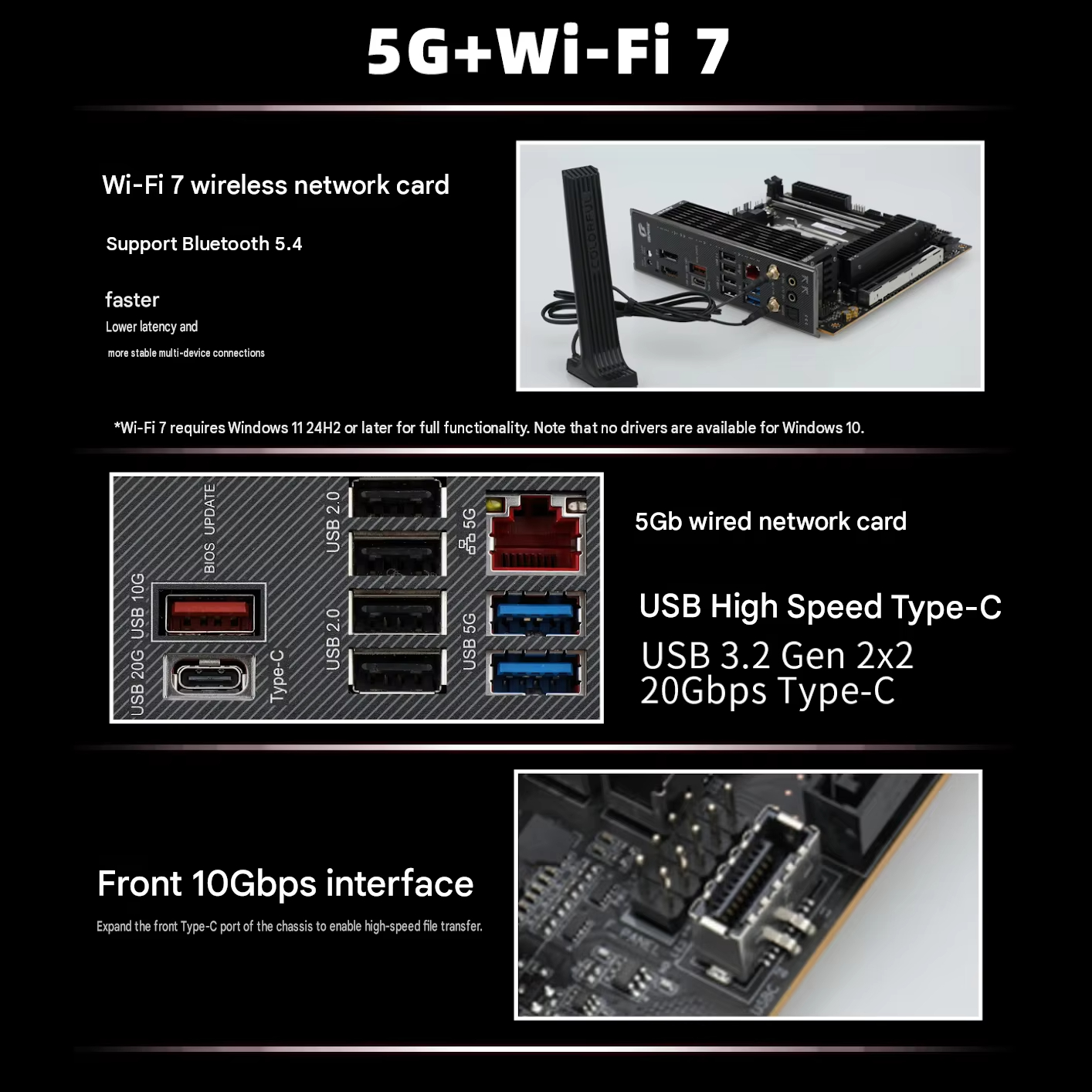

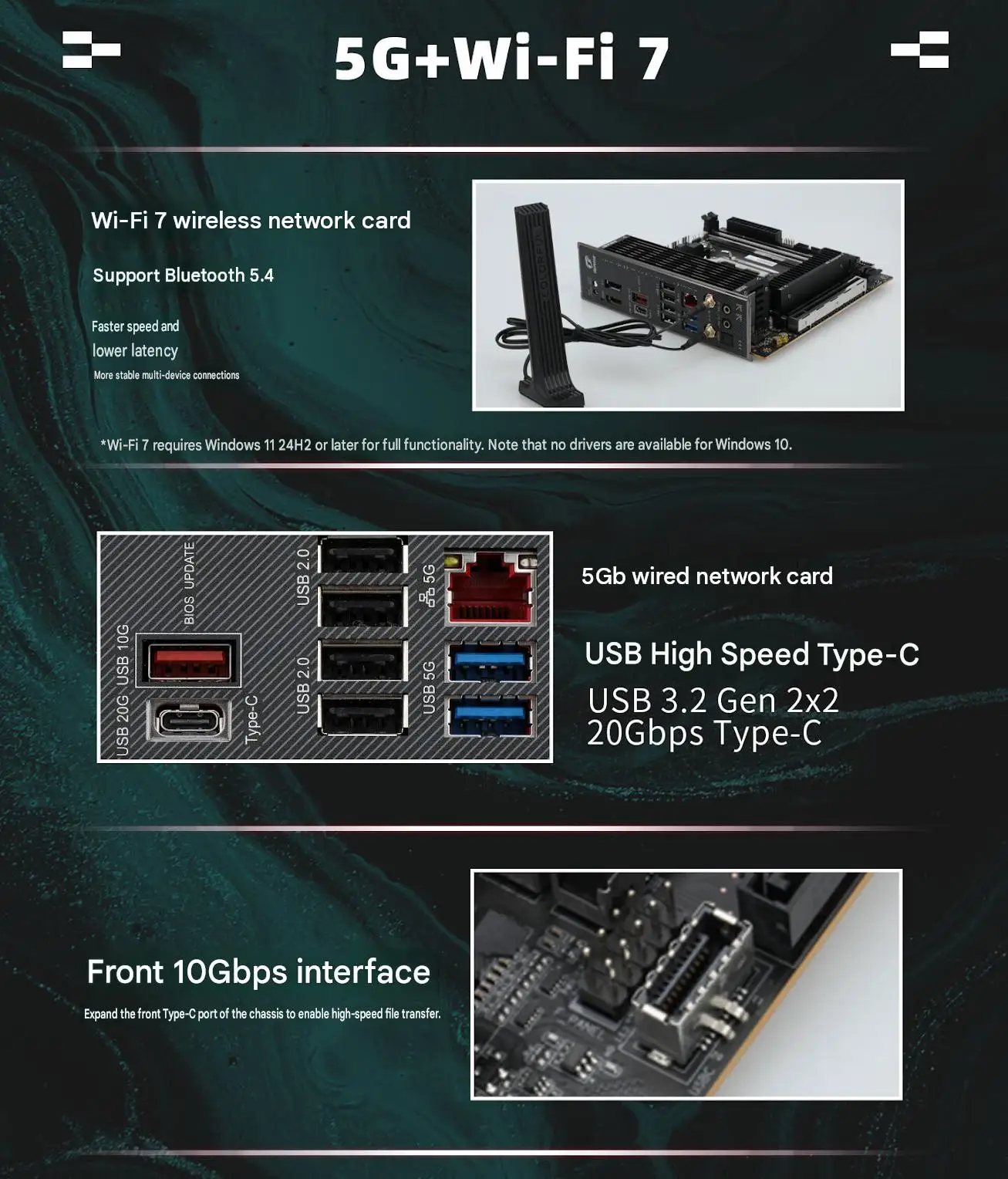

• Wireless：MediaTek Wi‑Fi 7 (MT7925) with Bluetooth 5.4

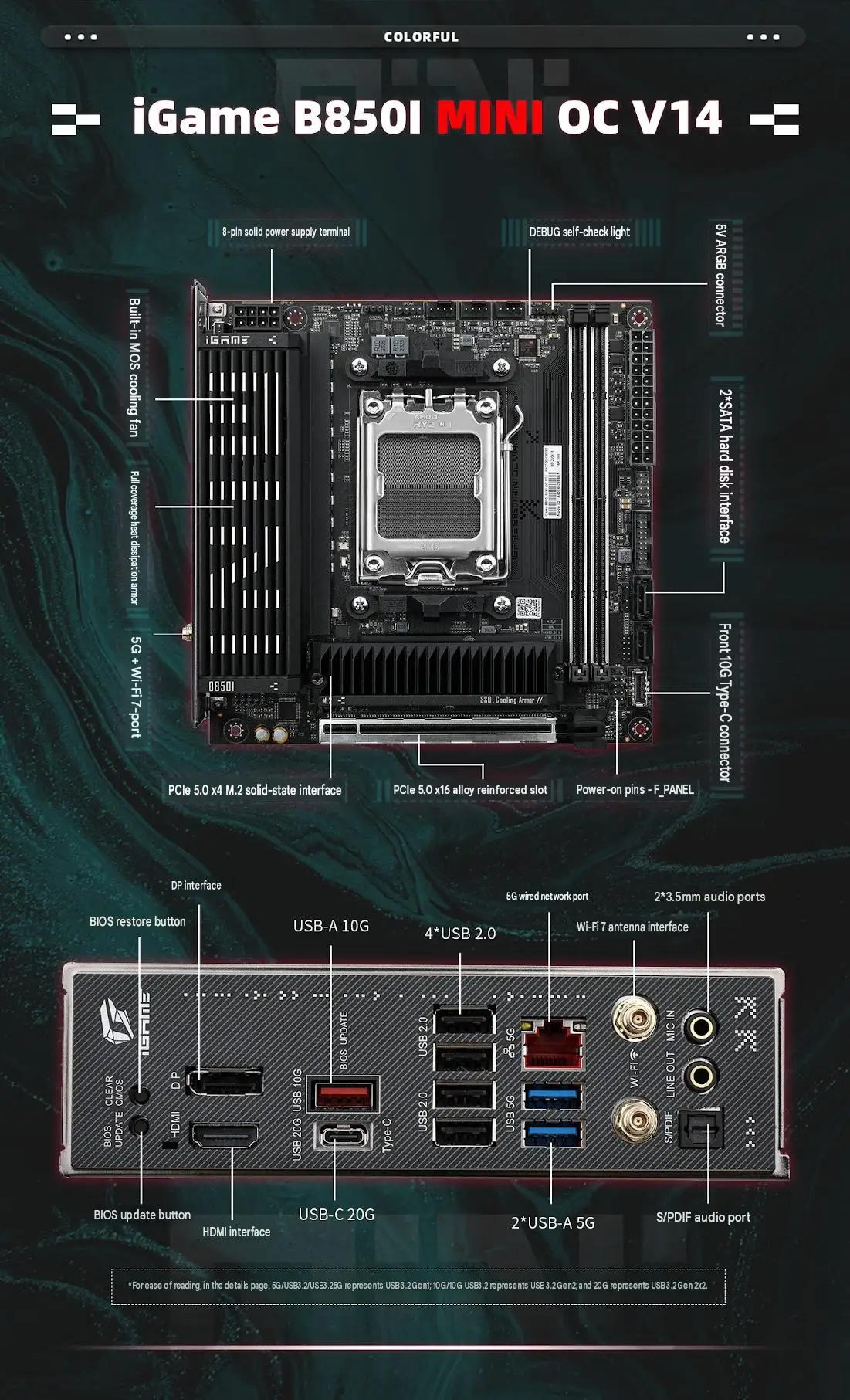

• Rear I/O：1 × USB‑C 20 Gbps (USB 3.2 Gen 2×2)1 × USB‑A 10 Gbps (USB 3.2 Gen 2)2 × USB‑A 5 Gbps (USB 3.2 Gen 1)4 × USB 2.01 × HDMI, 1 × DP (video outputs)1 × 5G Ethernet port, Wi‑Fi antenna connectors2 × 3.5 mm audio jacks + S/PDIF optical out
• Front‑panel header：1 × USB‑C 10 Gbps (for case front Type‑C)
